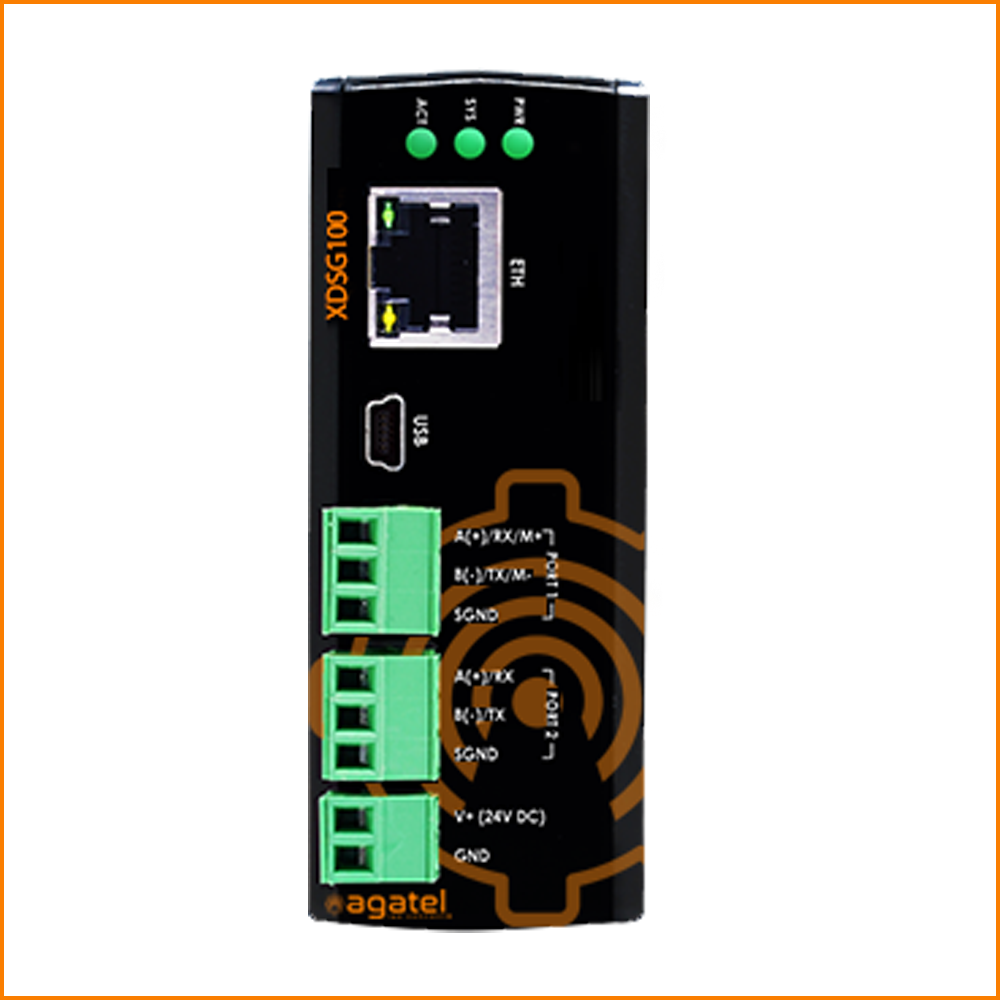

XDSG100 Series
DLMS Modbus Gateway

XDSG100 Series

DLMS Modbus Gateway

Key Features:

• Creating Gateways Between IEC 62056-21 and MODBUS Protocols
• Creating Gateways Between DLMS/COSEM and MODBUS Protocols
• Reading Data According to Different OBIS Code Lists
• Possibility to Read Multiple Electricity Meters with a Gateway
• Reading Data with the DATA READOUT Command
• Switching to Programming Mode and Sending Custom Commands
• User-friendly Software for Configuring Gateway
• Programming with USB Cable
• Upload/Download Program over TCP/IP
• Master/Slave Communication
• Multiple Connectivity
• Auto-Detect Socket Disconnection and Auto-Reconnection
• Remote Firmware Upgrade
• View Status of Device Over Web-Interface

Category:

Description

Technical Specifications

Programming
Programming Editor (Assistant Software)
Device Search over Network
Offline Configuration
Import/Export Configuration
Automatic MODBUS Addressing via OBIS Code Definitions
Multiple Electricity Meter Selection
Ability to Define Different OBIS Code Lists for Electricity Meters
Defining Electricity Meter Poll Frequency
Integrated Communication Ports
Ethernet (XDSG100E)    1 Port, 10/100 Mbps
Integrated GSM/GPRS Modem (XDSG100G)    1 Port, Quad-Band 850 / 900 / 1800 / 1900 MHz
Wi-Fi (XDSG100W)    1 Port, IEEE 802.11 b/g/n
Serial Ports (All Models)    1 Port RS485 (3 kV ESD Protection), 1 Port RS232
USB (All Models) 1 Port, Mini USB Type B
Communication Protocols
Master Communication Protocols MODBUS TCP, IEC62056-21, DLMS/COSEM
Slave Communication Protocols MODBUS TCP, MODBUS RTU
Maximum Connection Count
Number of Server Socket 2
Number of Client Socket per TCP Server Socket 16
Max Number of Meters on RS232 1
Max Number of Meters on RS485 32
LED Signals
Power 1 LED Blue
Running Status 1 LED Blue
Error 1 LED Blue
Environmental Conditions
Operating Temperature -20 / +75 C
Storing Temperature -40 / +80 C
Humidity 5..95 RH
Protection Standard IP20
Operating Altitude 0..2000 m
Electrical Wiring
Serial Port Inputs Demountable Terminal Block with Screw, (pitch 3.81 mm)
Power Supply Input Demountable Terminal Block with Screw, (pitch 3.81 mm)
Supply
Supply Voltage 9..36 VDC
Supply Current 50 mA @ 24 VDC
Warranty
Duration 24 Months
Certificates CE
Applications
Remote Monitoring of Electricity Meter Data
Energy Tracking and Billing Systems
Load Profile Data
AMR (Automatic Meter Reading) Solutions
Telemetry
Master Protocols: MODBUS TCP, IEC62056-21, DLMS/COSEM
Slave Protocols: MODBUS TCP, MODBUS RTU
Reading Meter Data with DATA READOUT and PROGRAMMING MODE
Some Supported Electricity Meter Models
Elster: A1500 Series
Itron: SL7000 Series
Landis: E550 Series
EMH: LZQ Series
Iskra
Viko
Makel: C410, C510, T300 Series
Kohler: AEL.TF.09, AEL.TF.11, AEL.TF.19, AEL.TF.20, AEL.TF.21, AEL.TF.22 Series
Luna

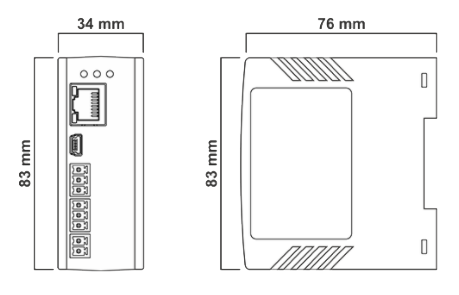

Drawing
