Description
Technical Specifications
| Technical Specifications | |

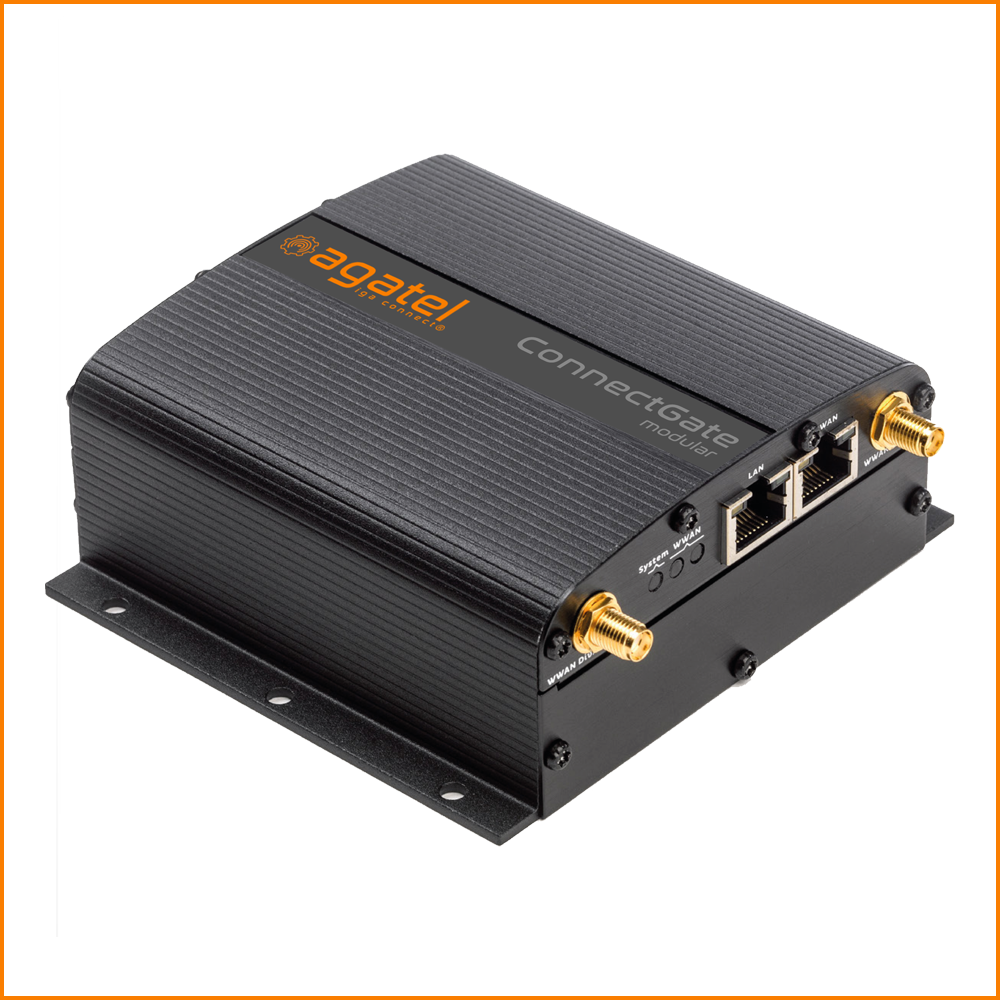

| Model Name | ConnectGate modular |
| WWAN Modem LTE | |
| Supported frequency bands | LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28
TDD: 38/39/40/41 |
| Max. Connectivity speeds | LTE DL 150 Mbps, UL50 Mbps |
| WWAN Modem 3G/2G | |
| Supported frequency bands | GSM/GPRS/EDGE: 850/900/1800/1900 MHz (B2, B3, B5, B8)
UMTS/HSDPA/HSUPA/HSPA+: 800-850/900/AWS (1700/2100)/1800/1900/2100 MHz (B1, B2, B4, B5, B6, B8, B19) |
| Max. Connectivity speeds | DC-HSPA+ DL 42 Mbps, UL 5.76 Mbps |
| RX Diversity | Simultaneous Equalization and Rx Diversity on all bands |
| WWAN antenna | |
| Antenna connector | 1 × SMA: WWAN Main
1 × SMA: WWAN Mimo/Div/GPS |
| SIM | |
| USIM/SIM connection – Class B and Class C | Micro-SIM (3FF) |
| CPU | |
| i.MX280 (ARM926EJ-S @ 450 MHz)
Memory available for customer apps 512 MB Flash (20 MB for data, 30 MB for application, 372 MB extra data partition) |
|
| GPS | |
| Standalone GPS, Assisted GPS, GPS XTRA
Wideband GPS processing (20MHz) for improved measurement accuracy Passive/active GPS antenna support |
|
| Ethernet (IEEE 802.3) | |
| 10/100Mb/s | 2x RJ45 Connector (LAN/WAN or LAN/LAN) |
| MicroSD card holder | |
| on main PCB | |
| Power control | |
| Available | Timed wakeup. Ignition sensing (with extra 3rd pin on DC power connector) |
| Power consumption | |
| The power consumption figures are given per functionality, to calculate the total power consumption of the ConnectGate add all different functionalities.
All numbers shown below are typical values and assume the ConnectGate is powered with a 12V power supply. |
|
| – Ignition sense | |
| Sleep mode | 2.4 mA |
| Note | This feature is only available on the ConnectGate LTE. It allows the ConnectGate to go in deep sleep mode and wake up again by pulling high the ignition sense input on the power connector. |
| – Idle mode | |
| 2G | 170 mA |
| 3G | 220 mA |
| LTE | 260 mA |
| Note | This is the power consumption when the radio is listening to the mobile network but no connection is setup yet. Idle mode can be achieved by disabling the 3G/4G radio interface in the WebGUI of the ConnectGate. |
| – Data traffic | |
| 2G | 210 mA |
| 3G | 260 mA |
| LTE | 300 mA |
| GPS active | 20 mA (by default the GPS is disabled on the ConnectGate) |
| Ethernet | 25 mA |
| Note | This is the power consumption measured for the talk time test according to the DG.09 specifications.
Data traffic current already includes the idle current. You should not add them to calculate the total data traffic current. |
| Battery | |
| Optional | Li-Ion battery: optional last gasp function (up to 1h with limited functionality)
Battery backup RTC (7 days) |
| Power input | |
| 9-33V DC | DC input voltage: 9-33 V DC
Connector: Micro-Fit 3.0TM, Dual row, 4-position; DC, GND sensing input |
| USB | |
| with optional expansion card | |

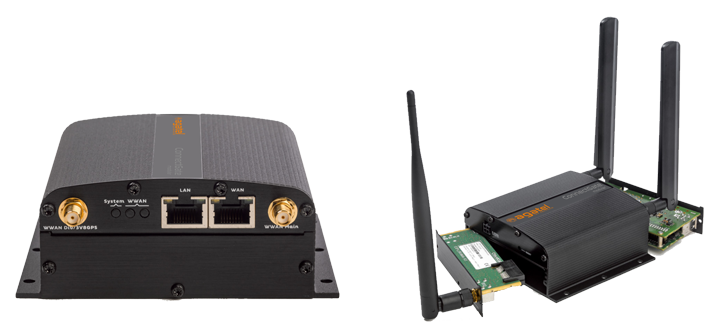

| Rear Expansion card | |
| with optional expansion card | |
| Front Expansion card | |
| with optional expansion card | |
| Aluminium Case | |
| Dimensions | 115 × 106 × 45 mm
4.52 × 4.17 × 1.77 in |
| Weight | 285 g / 10.05 oz |
| ConnectGate mounting | Mounting, Bulkhead, 6xM4 holes, DINrail with adapter |
| System status LED | |
| Environmentals | |
| Operating temperature | -30°C to +70°C / -22°F to to 158°F |
| Storage temperature | -40°C to +85°C / -40°F to to 185°F |
| Humidity | 5% – 95% |
| Certifications | |
| CE, FCC, PTCRB, ISED | |
| Std. compliance | |
| ROHS, Reach, WEEE | |
Ordering information
| Order numbers differ per model | |
| ConnectGate modular R4 | XCGD-ST-135 |
| ConnectGate modular R4 with integrated battery | XCGD-IB-198 |
