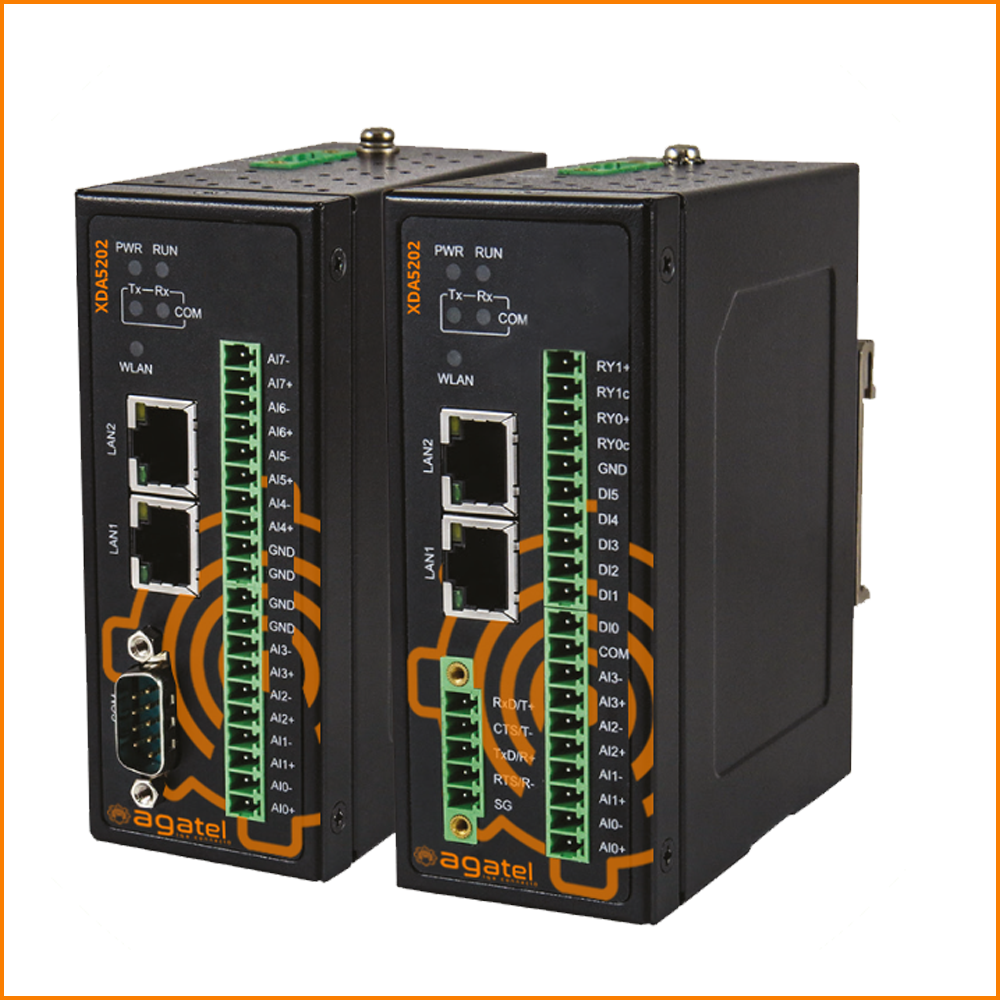

<strong>XDA5202 Series</strong> <br>Industrial IoT Remote I/O

XDA5202 Series
Industrial IoT Remote I/O

XDA5202 Series

Industrial IoT Remote I/O

Key Features:

• Access data through Modbus/TCP/RTU/ASCII
• Supports MQTT for IIoT applications
• 2 x redundant LAN ports
• Support for MQTT Security over TLS
• Optional WiFI version with Client mode
• Up to 20 x different I/O combinations available
• Industrial EMC protection
• Wide operating temperature range: -40ºC~70ºC*

Category:

Description

Specification

Technical Specifications

Ethernet
Compliance IEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X)
Number of ports Transmission Rate
Auto MDI/MDI-X		 2x RJ45

10/100 Mbps Yes
Serial
Mode RS-232/ RS-422 / RS-485 (2-wire and 4-wire)
Number of ports 1x
Connector 5-pin 3.81mm Terminal Block (-TB models) or 9-pin D-Sub9 (-DB models)
Baud rate 1200~234,000 bps
Data bits 7,8 software selectable
Stop bits 1,2 software selectable
Auto-detection RS-485 auto-detection by hardware
Wireless LAN (-W version only)


Standard

 802.11b (2.4GHz)

802.11g (2.4GHz)
802.11n (2.4GHz)
Antennas 1x RP-SMA(F) connector
Max. Throughput 72.2Mbps using 20MHz bandwidth – 150Mbps using 40MHz bandwidth
Frequencies FCC/IC (US/CA): 2412~2462MHz; TSI(EU)/Japan: 2412~2472MHz
Encryption WPA, WPA2, 802.1x, 802.11i, Open, Shared Key, Pair-wise-key authentication
Power
Input Voltage 12-48VDC
Input Current 0.6~0.2A
Max. Power Consumption 9.6W
Reverse polarity protection Present
Connector 5.08mm 3-Pin Lockable Terminal Block
LED
Indicators PWR, RUN, RJ45 Act/Link, COM1 Tx, COM1 Rx, Wireless
Software Features
Protocols TCP, IPv4, UDP, DHCP Client/Server, HTTP, HTTPS, NTP client, Telnet, ARP,

SNMPv1,v2c,v3, serial console(on-board connector), MQTT, MQTT Security over TLS, SMTP/ SMTP with TLS
Wireless Options (-W only) Client mode
I/O access Modbus TCP/RTU/ASCII, MQTT publisher/subscriber
Other I/O software features Mirror function
Physical Characteristics
Housing IP30 protection according to EN 60529
Material SPCC
Dimension (W x H x D) 45.3 x 89.6 x 110 mm
Weight 350g
Installation DIN-rail or wall-mount (optional)
Environmental Limits
Operating Temperature -40~70ºC (-40~158ºF) – 0~65ºC (34~149ºF) Wireless version only
Storage Temperature -40~85ºC (-40~185ºF) – -20~85C (-4~185F) Wireless version only
Ambient Relative Humidity 5~95% RH (non-condensing)
I/O Specifications
– Digital Inputs
Input Type Single status (wet or dry contact) or counter
Dry contact Logic 1: short to GND, Logic 0: open
Wet contact Logic 1: 0 to 3 VDC, Logic 0: 10 to 30 VDC
Counter Frequency 250 Hz
Isolation 3K Vrms
– Digital Outputs
Output Type Output or Pulse output
Nominal Voltage 30 VDC
Current Rating max 500 mA totally
Over-voltage Protection 45 VDC
Over-current Protection 2.6A
Over-temperature shutdown 175ºC
Isolation 3K Vrms
– Relay Outputs
Form Form A power relay
Isolation resistance 1G Ω @500VDC
Isolation between contacts 3K Vrms
– Analog Inputs
Current contact rating Voltage/Current Software Selectable
Input Range Voltage: ±60m VDC, ±500m VDC, ±1 VDC, ±5 VDC, ±10 VDC

Current: 4 to 20 mA
Resolution 16 bits
Accuracy ±0.1% FSR (Voltage)@ 25 ºC

±0.2% FSR (Current)@ 25 ºC
Sampling Rate > 10 samples/sec (per channel)
Isolation 3K VDC or 2K Vrms
– Analog Outputs
Output Type Voltage/Current Software Selectable
Voltage Range Voltage: ±10 VDC
Current Range Current: 4 to 20 mA
Resolution 16 bits
Accuracy ±0.1% FSR @ 25 ºC
Load Resistor Internal resistor, 500Ω

Regulatory Approvals

Safety EN62368-1


EMC

 EN55032:2015+AC:2016, EN61000-6-4:2007+A1:2011, EN55024:2010+A1:2015, EN61000-6- 2:2005+AC:2005, EN301489-1 v2.2.0 / EN301489-17 v3.2.0

FCC Part 15B FCC Part 18
Radio FCC Part 15.247 for WIFI b/g/n EN300328 V2.1.1 for WIFI b/g/n
Test Version Item Value Level
IEC 61000-4-2 2009 ESD Contact Discharge

Air Discharge

 ±4KV

±8KV

 2

3
IEC 61000-4-3 2010 RS 80-1000MHz

1.4-6.0GHz

 10(V/m)

3(V/m)

 3

2
IEC 61000-4-4 2012 EFT DC Power Port Signal Port ±1.0KV

±1.0KV

 2

3


IEC 61000-4-5



2017



Surge

 DC Power Port DC Power Port Signal Port Line-to Line± 0.5 KV Line-to Earth± 1 KV Line-to Earth± 1 KV 2

2

2
IEC 61000-4-6 2013 CS DC Power Port 10 V rms 3
IEC 61000-4-8 2009 PFMF Enclosure 30A/m 4
Shock MIL-STD-810F Method 516.5
Drop MIL-STD-810F Method 516.5
Vibration MIL-STD-810F Method 514.5 C-1 & C-2
RoHS Yes
MTBF 22.66 Years
Warranty 5 Years

Order Information

Model name Description
XDA5202-DB-16-0-0-0 1x RS232/422/485 DB9,2x 10/100Mbps,8 DOs,8 DIs
XDA5202-TB-16-0-0-0 1x RS232/422/485 TB5,2x 10/100Mbps,8 DOs,8 DIs
XDA5202-DB-0-0-8-0 1x RS232/422/485 DB9,2x 10/100Mbps,8 AIs
XDA5202-TB-0-0-8-0 1x RS232/422/485 TB5,2x 10/100Mbps,8 AIs
XDA5202-DB-6-2-4-0 1x RS232/422/485 DB9, 2x 10/100Mbps, 6DIs, 4 AIs, 2 Rlys
XDA5202-TB-6-2-4-0 1x RS232/422/485 TB5, 2x 10/100Mbps, 6DIs, 4 AIs, 2 Rlys
XDA5202-DB-8-4-0-0 1x RS232/422/485 DB9,2x 10/100Mbps,8DIO, 4 Rlys
XDA5202-TB-8-4-0-0 1x RS232/422/485 TB5,2x 10/100Mbps,8DIO, 4 Rlys
XDA5202-DB-0-0-4-4 1x RS232/422/485 DB9,2x 10/100Mbps,4 AIs, 4 AOs
XDA5202-TB-0-0-4-4 1x RS232/422/485 TB5,2x 10/100Mbps,4 AIs, 4 AOs
XDA5202-DB-16-0-0-0-W 1x RS232/422/485 DB9,2x 10/100Mbps,8 DOs,8 DIs Wi-Fi
XDA5202-TB-16-0-0-0-W 1x RS232/422/485 TB5,2x 10/100Mbps,8 DOs,8 DIs Wi-Fi
XDA5202-DB-0-0-8-0-W 1x RS232/422/485 DB9,2x 10/100Mbps,8 AIs, WiFi
XDA5202-TB-0-0-8-0-W 1x RS232/422/485 TB5,2x 10/100Mbps,8 AIs,WiFi
XDA5202-DB-6-2-4-0-W 1x RS232/422/485 DB9, 2x 10/100Mbps, 6DIs, 4 AIs, 2 Rlys, Wi-Fi
XDA5202-TB-6-2-4-0-W 1x RS232/422/485 TB5, 2x 10/100Mbps, 6DIs, 4 AIs, 2 Rlys, Wi-Fi
XDA5202-DB-8-4-0-0-W 1x RS232/422/485 DB9,2x 10/100Mbps,8DIO,4 Rlys,WiFi
XDA5202-TB-8-4-0-0-W 1x RS232/422/485 TB5,2x 10/100Mbps,8DIO,4 Rlys,WiFi
XDA5202-DB-0-0-4-4-W 1x RS232/422/485 DB9,2x 10/100Mbps,4 AIs, 4 AOs,WiFi
XDA5202-TB-0-0-4-4-W 1x RS232/422/485 TB5,2x 10/100Mbps,4 AIs, 4 AOs,WiFi

Optional Accessories

Model name Description
XDP-75-24 75W DIN-Rail 24VDC pwr supply,88~264VAC /124~370VDC input
XPA-315-12-Y-LV6-US Y-Type (5.08 mm) power adaptor, 100-240VAC input, 1.25A @12VDC output, US plug, LV6.
XPA-315-12-Y-LV6-EU Y-Type (5.08 mm) adaptor, 100-240VAC input, 1.25A @ 12VDC output, EU plug
XCA-DB9-TB5 Female DB9 to Female 3.81mm TB5 Converter
XWK-454-A-BK Black Aluminum Wall Mount Kit
