Description
Hardware Specification

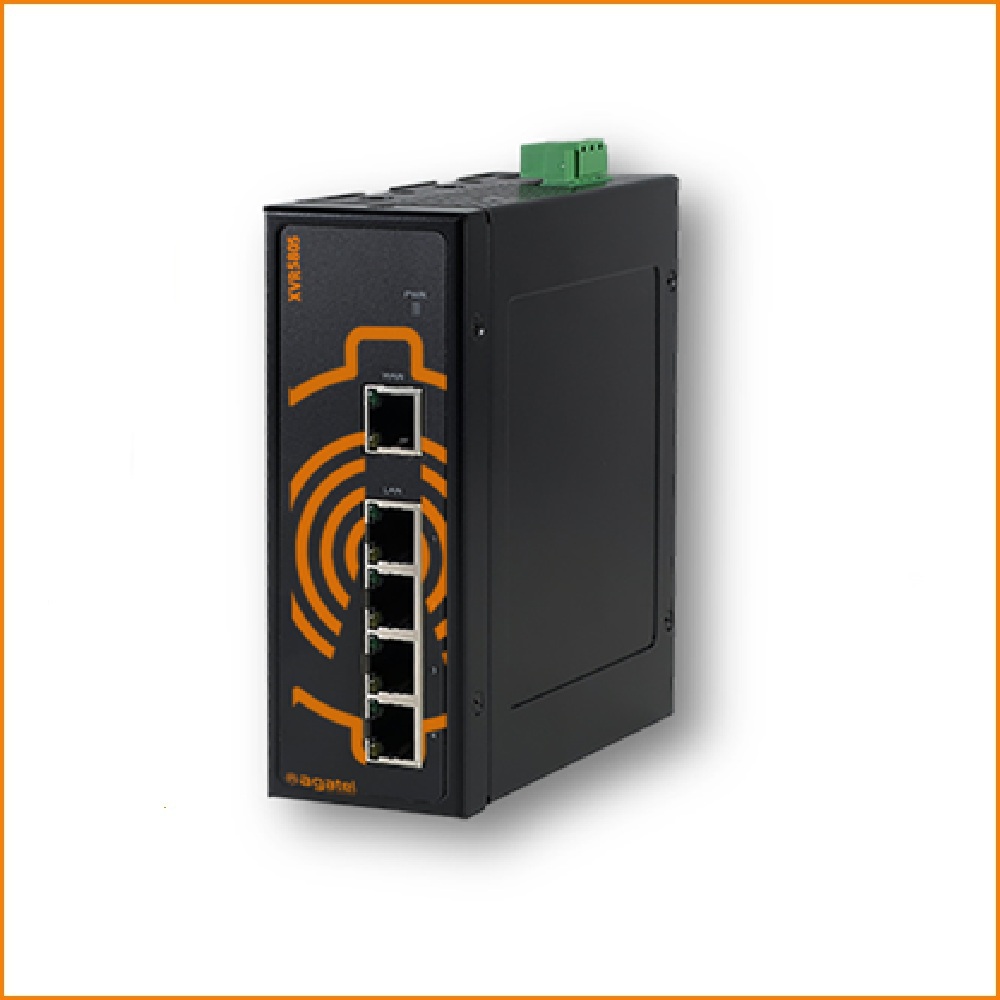

| Â Model Name | XVR5805 |
| Â CPU | ARM Cortex A7, Quad-Core |
Network Interfaces/Connectivity
| Ethernet Ports | Standard
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X)
Ports 5x 10/100/1000 BASE-TX RJ-45 1 x WAN 4 x LAN |
Watchdog
| Hardware WD Reset | Yes |
External I/O Interfaces
| Default/Reset Button | 1 Key |
| SD Solts | 1 Micro SD Slot |
Power
| Standard | DC 12-48V |
| Redundancy | Yes, PoE Model, Option for PoE or DC Input |
| Consumption | <20W |
| Connector | 3-Pin Terminal Block |
| Reverse Polarity Protection | Yes |
| POE (POE Version Only) | PoE PD, 802.3at, Mode A, @LAN4 |
Mechanical
| Shell | Metal shell |
| Size | 145 x 120 x 46mm |
| weight | 726g |
| Installation | DIN-Rail or Wall-Mount (optional kit) |
| Ingress Protection Rating | IP30 protection |
Environmental Limits
| Operating Temperature | -40~+75ºC（-31~+167℉） |
| Storage Temperature | -40~+85ºC（-40~+185℉ |
| Relative Humidity | 5%-95% (No condensation) |
Software Specifications
| Internet connection authentication | CHAP/PAP/Auto |
Network
|
IPv4/IPv6 |
DHCP server
DHCP Client/Static IP/PPPoE |
| Connection Protocol/Service | Telnet, SSH, SCP, Http, Https, SNMP |
| Industrial Protocol | NTP, DNS, 802.1Q VLAN, QoS, VRRP, MQTT |
Security
Firewall |
Access control list (ACL)
Port Forwarding Attack Prevention (Inserted after Port forwarding) |
| VPN | IPSEC, OPEN-VPN, LT2P, PPTP Server, GRE |
Management
| System Configuration | WEB, Telnet, SSH |
| Firmware upgrade | WEB |
| System Log | SD Storage, remote logger, local flash |
| SNMP | SNMP v1/v2/v3 |
| Diagnostics | Ping, Traceroute, Nslookup |
Statistics
| Statistics | Memory, WAN, LAN |
Regularity Approval
| Safety | IEC/EN62368-1 | |||||
| EMC | FCC Part 15, Subpart B, Class A
EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3 |
|||||
| Test | Item | Value | Level | |||
| IEC 61000-4-2 | ESD | Contact Discharge Air Discharge | ±6KV
±8KV |
3
3 |
||
|
IEC 61000-4-3 |
RS |
Enclosure Port |
3 (V/m) , 80-1000MHz
3 (V/m), 1-6GHz |
3
2 |
||
|
IEC 61000-4-4 |
EFT |
DC Power Port Signal Port | ±2.0KV@ 5.0kHz
±1.0KV @ 5.0kHz |
3
3 |
||
|
IEC 61000-4-5 |
Surge |
DC Power Port Signal Port |
Line-to-Line ±1KV Line-to-Earth ±2KV Line-to-Earth ±2.0KV | 3
3 3 |
||
|
IEC 61000-4-6 |
CS |
DC Power Port Signal Port | 3V, 150KHz to 80MHz, 80%AM
3V, 150KHz to 80MHz, 80%AM |
2
2 |
||
| IEC 61000-4-8 | PFMF | Enclosure | 1A/m (r.m.s), 50Hz or 60Hz | 1 | ||
| Shock | IEC 60068-2-27 | |||||
| Drop/Freefall | IEC 60068-2-32 | |||||
| Vibration | IEC 60068-2-64 | |||||
|
Others |
RoHS, including 2015 amendment REACH
Conflict-Mineral Free |
|||||
| Warranty | 5 years | |||||
| Model | Technology | WAN | LAN | Serial | SIM | POE | Wi-Fi | GPS | I/O |
| XVR5805 | Ethernet | 1 | 4 | 0 | 0 | 0 | 0 | 0 | 1 |
| XVR5805-P | Ethernet | 1 | 4 | 0 | 0 | 1 | 0 | 0 | 1 |
