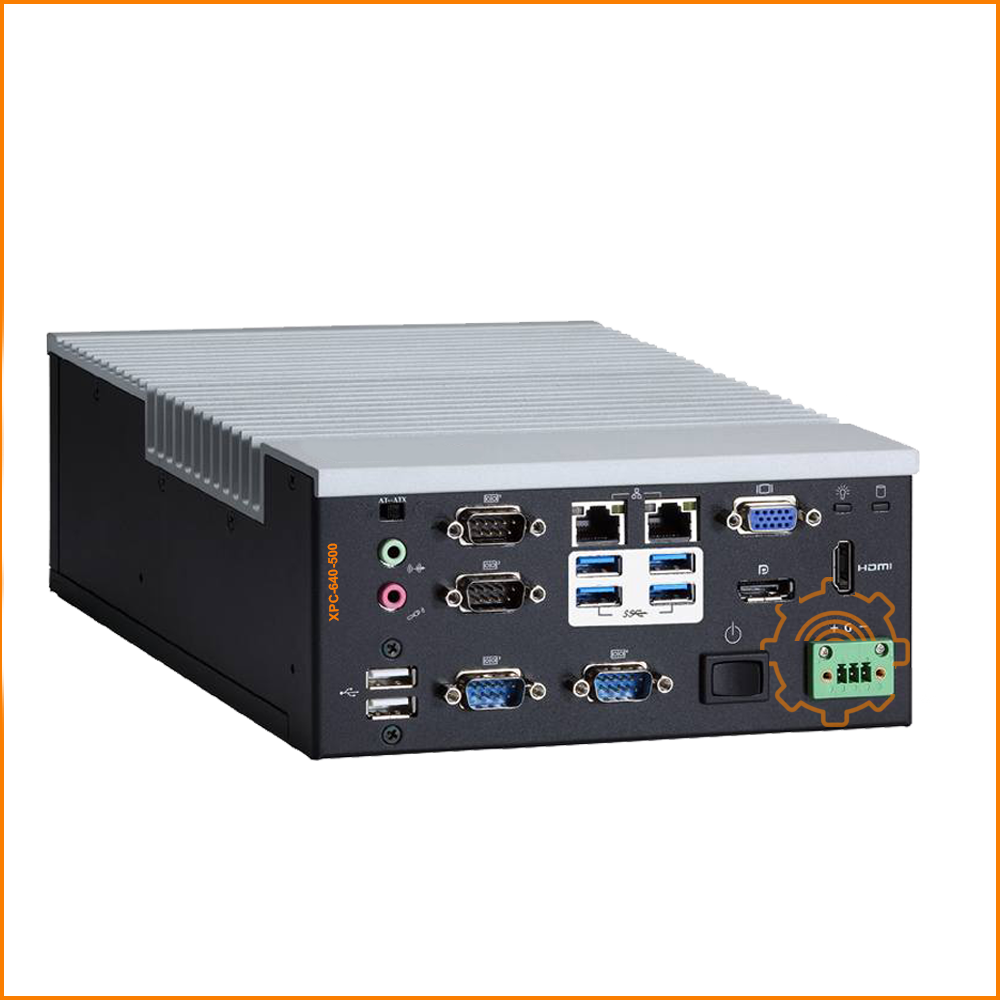

XPC640-500
Industrial Fanless System 6/7th Gen

XPC640-500

Industrial Fanless System 6/7th Gen

Key Features:

  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 or
  • Celeron® processor (Kaby Lake/Skylake)
  • Supports 4 COM, 6 USB and 2 GbE LAN
  • Two 2.5″ SATA drive bay
  • PCI Express Mini Card slot and SIM slot
  • Front I/O connectivity design
  • 10 to 30 VDC wide range power input

Description

Technical Specifications

Model Name XPC640-500
CPU 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35W)
System Memory 2 x 288-pin DDR4-2133 DIMM, up to 32GB
Chipset Intel® H310
BIOS AMI
COM 1 x RS-232/422/485

3x RS-232

USB 2 x USB 2.0

4 x USB 3.0

Display 1 x DisplayPort

1 x HDMI

1 x VGA

Digital I/O TPM 2.0
Audio 1 x Audio (Mic-in/Line-out)
Storage 2 x 2.5” SATA HDD drive bay (max. up 15 mm height)

1 x mSATA (enabled in BIOS setting)

Expansion 1x Full-size PCI Express Mini Card slot with mSATA supported (PCI Express + USB signal)

1 x SIM slot

Others 1 x Phoenix type VDC power input connector

1 x AT/ATX quick switch

2 x SMA-type antenna connector

1 x ATX power switch

Power 10  to 30 VDC
Watchdog Timer 255  levels, 1 to 255 sec.
Construction Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature -10°C to +55°C (+14°F to +131°F) (with W.T. DRAM/SSD for Skylake)

-10°C to +50°C (+14°F to +122°F) (with W.T. DRAM/SSD for Kaby Lake)

Relative Humidity 10% – 90%, non-condensing
Vibration 2 Grms with SSD (5 to 500 Hz, X, Y, Z directions)
Shock N/A
Certifications CE
EOS Support Win10 IoT, WE8S, Linux
Model name Description
XPC640-500-FL Fanless embedded system with LGA1151 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, Intel® H110, HDMI, DisplayPort, VGA, 4 USB 3.0, 4 COM, PCI Express Mini Card slot and 10 to 30 VDC

Optional



2.5” SATA HDD 64GB or above
2.5” SATA SSD 100GB or above
DDR4 RAM 2GB to 16GB
mSATA 64MB or above
XWK6400 Wall mount kit
XDK6401 DIN-rail kit
3G/LTE module
XPA2400-120-24 24V 120W power adapter
Power cord
