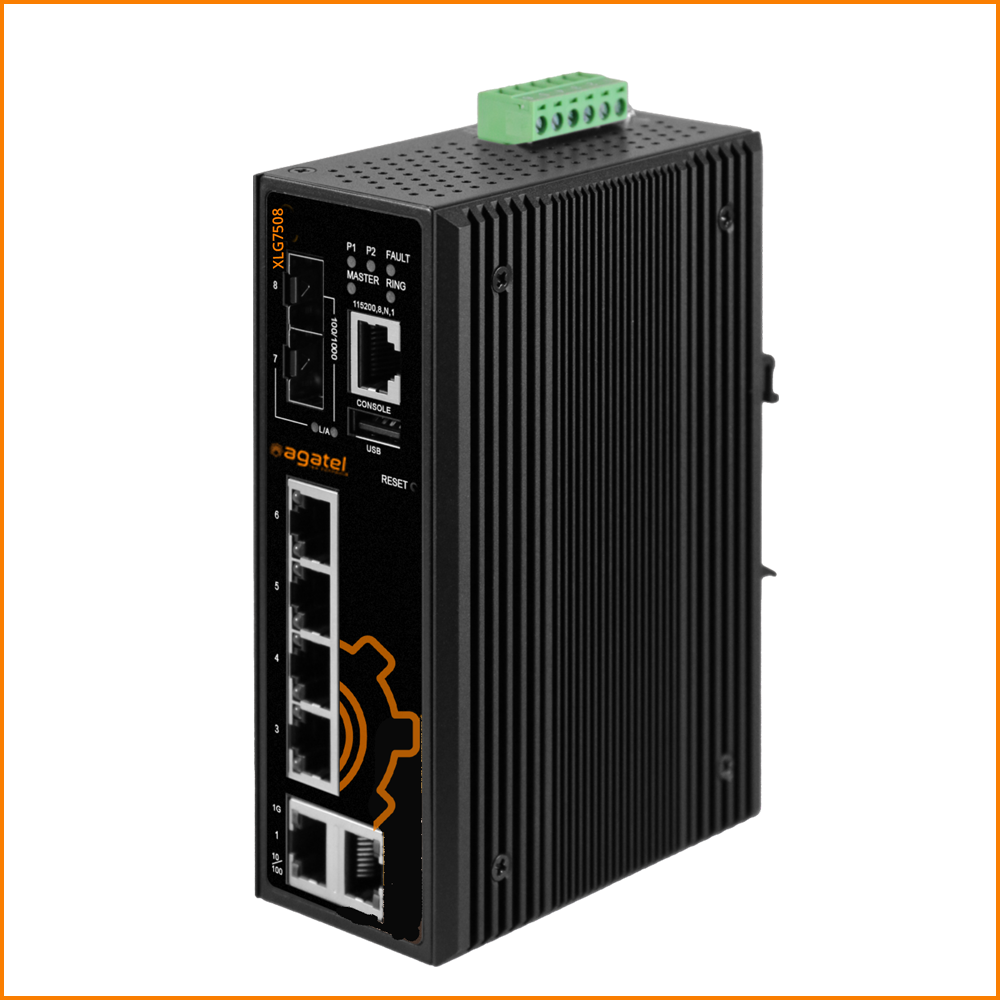

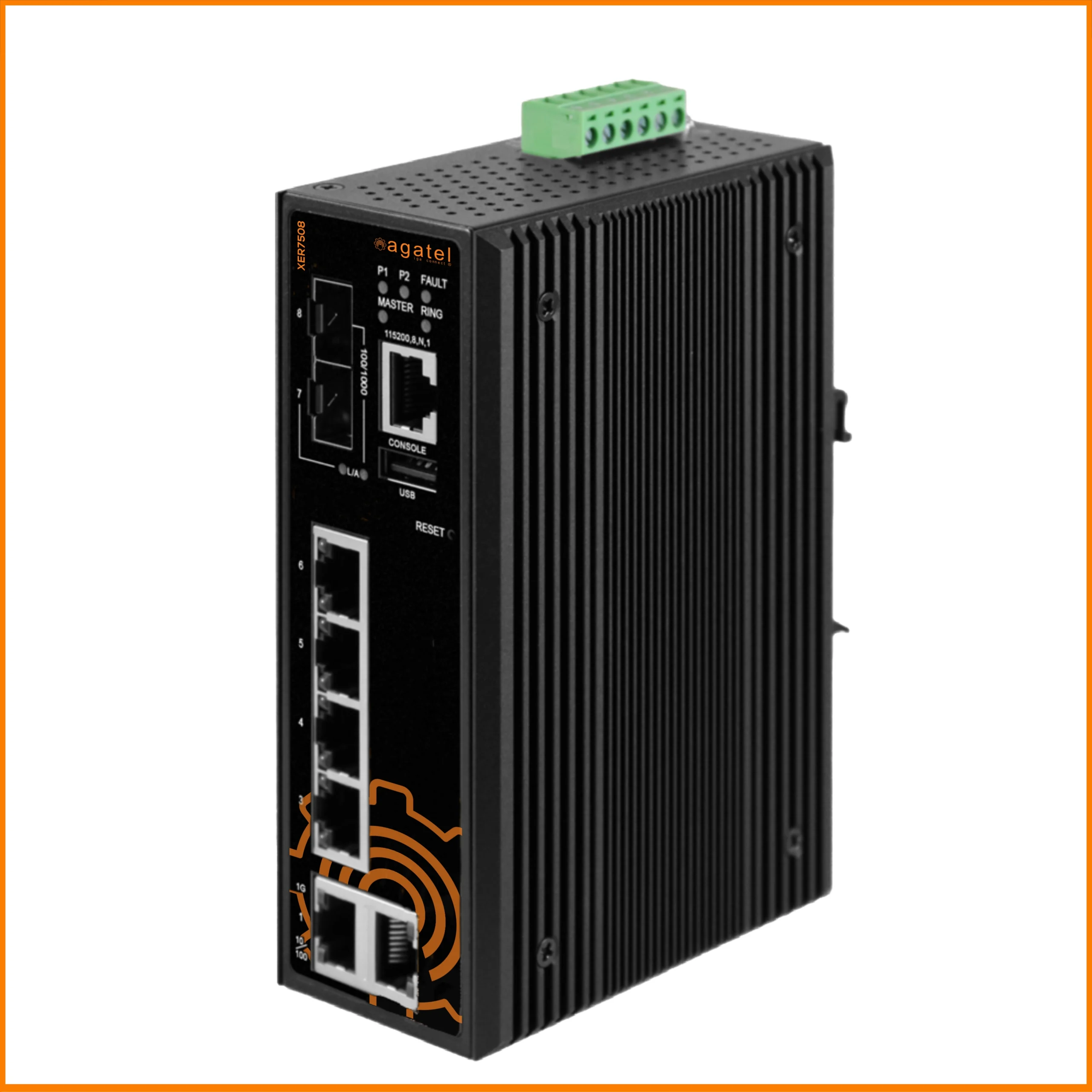

XLG7508 Series
8-Port Lite L3 Industrial Managed Gigabit Switch

XLG7508 Series

8-Port Lite L3 Industrial Managed Gigabit Switch

Key Features:

• 6-port 10/100/1000Base-T(X) Gigabit Ethernet
• 2-port dual rate 100/1000Base-(F)X SFP slots
• Multiusers account for security
• Configuration: http, https, CLI Command, Telnet, SNMP, SSH
• Network redundancy support: G.8032 ERPS v2/STP/RSTP/MSTP
• Supports IP route for routing function
• Supports RADIUS, TACACS+ authentication protocol
• Supports QoS, LACP bandwidth control
• Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
• PoE ping alarm function for PoE ports power recycle
• Redundant power inputs design
• Operating temperature range – STD: -10°C ~70°C, EOT: -40°C ~ 75°C


Technical Specifications

Hardware Platform




IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3z 1000Base-X Gigabit Fiber

IEEE 802.3af/at Power over Ethernet

IEEE 802.3x Flow Control

IEEE 802.1d STP (Spanning Tree Protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)

ITU-T G.8032 / Y.1344 ERPS v1/v2(Ethernet Ring Protection Switch)
IEEE 802.1Q Virtual Local Area Network (VLAN)

IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization

IEEE 802.1X Network Authentication

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

IEEE 802.3ad Link Aggregation (LACP)

Processing Type Store and Forward
Flow Control IEEE 802.3x flow control, back pressure flow control
Network Management
Management IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2

telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS

client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone

/Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console

Port, Power lost warning, relay trigger

Security Port-based/Single/Multi 802.1X, ACL(Port/Rate Limiters/ACE), MACbased Authentication, VLAN assignment, QoS Assignment, Private

VLAN, Guest VLAN, RADIUS accounting, TACACS+, IP MAC binding,

WEB/CLI authentication, Authorization (15 levels), Port Security Limit

Control, ACLs for filtering/policing/port copy, IP source guard, ARP


L2 Switching Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard,

Link Aggregation static/LACP, BPDU guard, Error disable recovery,

IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC

throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2

L3 Switching DHCP option82, IP route
QoS 802.1p Queueing, Input priority mapping, Storm control for

Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress

shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking,

Scheduler mode

Power Saving ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Network Redundancy STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2(<50ms)
Configuration Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
PoE Power budget protection, PoE output

scheduled, PoE alive check and remote reboot PD device

System / Diagnostics Dual Image Protection, PING, PING6
SNMP MIBs & RFC Standards RFC 2674 VLAN MIB

IEEE-802.1Q bridge MIB 2008

RFC 2819 RMON (group 1, 2, 3, and 9)



RFC 4188 bridge

RFC 4292 IP forwarding table

RFC 4293 management information base for the Internet Protocol (IP)

RFC 5519 multicast group membership discovery

RFC 4668 RADIUS auth. client

RFC 4670 RADIUS accounting

RFC 3635 Ethernet-like

RFC 2863 interface group MIB using SMI v2

RFC 3636 802.3 MAU

RFC 4133 entity MIB v3
RFC 3411 SNMP management frameworks

RFC 3414 user-based security model for SNMPv3

RFC 3415 view-based access control model for SNMP

RFC 2613 SMON – PortCopy


IEEE 802.1AB LLDP-MIB (LLDP MIB included in a clause of the STD)

IEEE 802.3ad (LACP MIB included in a clause of the STD)

IEEE 802.1X (PAE MIB included in a clause of the STD)

TIA 1057 LLDP-MED ( MIB is part of the STD)


Switch Properties
Back-Plane (Switching Fabric  16Gbps
Priority Queues 8
Max. Number of VLANs 4095
VLAN ID Range VID 1 to 4095
Memory Buffer 4Mbits
Jumbo Frame 9.6Kbytes
MAC Table Size 8K
IGMP Group 1024
Transfer Rate 14,880pps for Ethernet port

148,800pps for Fast Ethernet port

1,488,000pps for Gigabit Ethernet port

RJ45 Ports 6*10/100/1000Base-T(X) with PoE+, auto negotiation speed, Full/Half

duplex mode, and auto MDI/MDI-X connection

Fiber Port 2*100/1000Base-(F)X SFP slots
Wavelength Depends on SFP modules
LED Indicators System: Power 1, Power 2, Master, Ring, Fault

Ethernet ports: Speed/Link/Active

PoE: On-connected to PD devices

SFP: Link/Active

RS232 Serial Console 1*RS232 in RJ45 connector with console cable,

baud rate 115,200bps,8,N,1

Relay Contact 24 VDC, 1A resistive
Network Cable 10Base-T:

2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m)


2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)


4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)

Optical Cable Multi-mode cable – 50/125um or 62.5/125um,

Single-mode cable – 9/125um or 10/125um

Power Requirements
Input Voltage dual 12-48VDC redundant power inputs
Power Connection 1 removable 6-contact terminal block
Overload Current Protection Present (Slow-Blow Fuse)
Reverse Polarity Protection Present
System Power Consumption Max. 15W full loading
Mechanical Characteristics
Housing Metal, IP30 protection
Dimensions (W x H x D) 54 x 142 x 99 mm (2.13 x 5.59 x 3.9 inch)

Unit weight: 0.87kg, Shipping weight: 1.27kg


Mounting DIN-Rail Mounting, Wall Mounting
Environmental Limits
Operating Temperature STD: -10°C ~ 70°C

EOT: -40°C ~ 75°C

Storage Temperature -40°C ~ 85°C
Ambient Relative Humidity 5 to 95%, (non-condensing)
Regulatory Approvals
EMI FCC Part 15 Subpart B Class A,

CE EN55022/EN61000-6-4 Class A

EMS CE EN55024/EN61000-6-2 Class A:

IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT),

IEC61000-4-5 (Surge), IEC61000-4-6 (CS),

IEC61000-4-8 (Magnetic Field)

Free Fall IEC60068-2-32
Shock IEC60068-2-27
Vibration Vibration IEC60068-2-6
Green RoHS Compliant
Safety UL61010-1, UL61010-2-201
MTBF (Telcordia SR-332, Issue

3, GB, 25oC)

47,864 hrs.
Warranty 5 Years
XLG7510 Series
XLG7508-2S 8-Port Industrial Gigabit Managed Ethernet Switch
– 6*10/100/1000Base-T(X) +2*100/1000Base-(F)X SFP Slot, Standard
Operating Temperature: -10° to 70° C
XLG7508-2S-T 8-Port Industrial Gigabit Managed Ethernet Switch
– 6*10/100/1000Base-T(X) +2*100/1000Base-(F)X SFP Slot, Extended
Operating Temperature: -40° to 75° C
