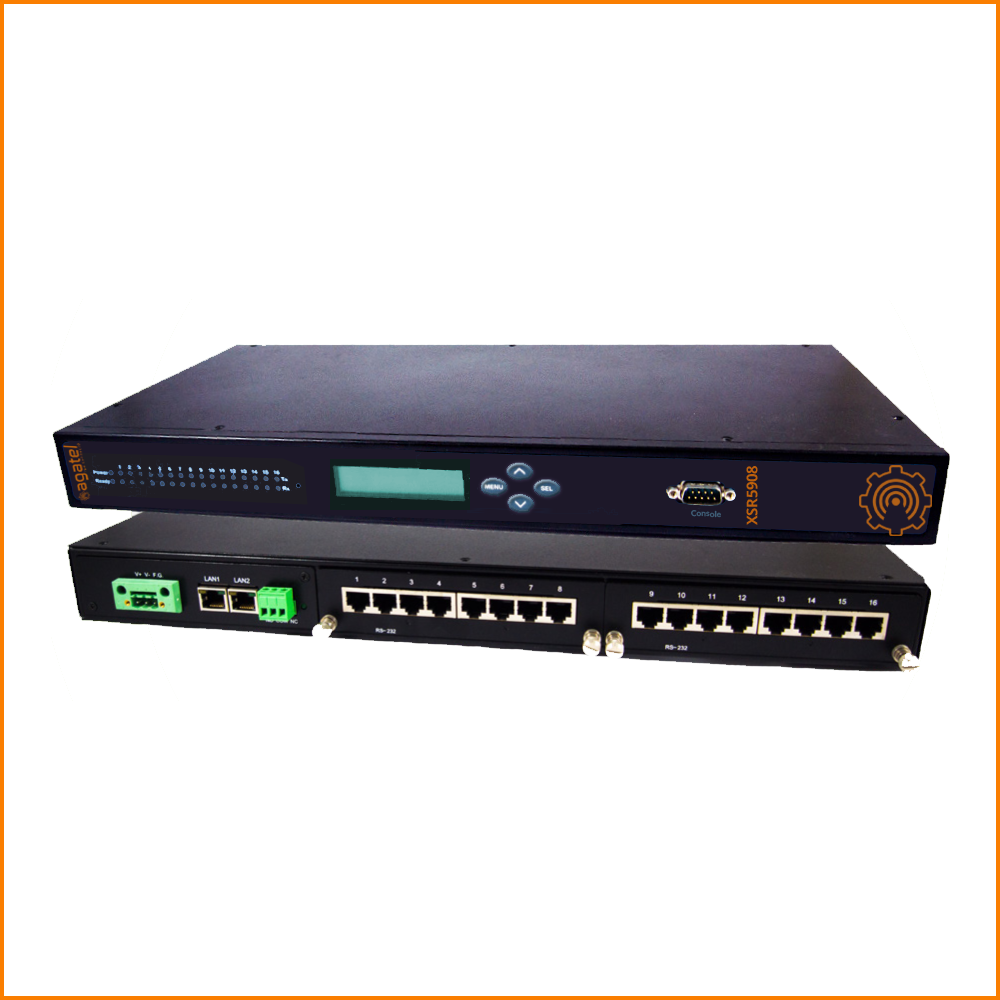

<strong>XSR5908/XSR5916 Series </strong> <br>8 or 16-Port Rack-Mount Industrial Secure Serial Device Server

XSR5908/XSR5916 Series
8 or 16-Port Rack-Mount Industrial Secure Serial Device Server

XSR5908/XSR5916 Series

8 or 16-Port Rack-Mount Industrial Secure Serial Device Server

Key Features:

• Remotely monitor, manage, and control industrial field devices
• Industrial EMC protection, Opt. Serial port Isolation, -20°C~70°C operation
• 2 Fast-Ethernet ports, dual-subnet or RSTP redundancy
• 8/16 sw-selectable RS-232/485/422 (*) RJ45 serial ports, up to 921kbps
• 24~48 VDC Power Input or 100~240 VAC Power input (EU or US version)
• TCP Server/Client, UDP, Virtual COM and Tunneling modes supported
• Supports SNMPv1/v2c/v3, Embedded security with IPsec and OpenVPN
• Configuration via Web Browser / Serial Console / Telnet Console / Windows Utility / LCM Matrix
• Integrated RSTP redundancy

Category:

Description

Specification

Technical Specifications

Model Name XSR5908/XSR5916
Network interface
Speed IEEE 802.3 10BaseT
IEEE 802.3u 100BaseT(X)
LAN Mode Dual Subnets or Network Redundancy
Connector ports 2x 10/100BASE-T(X) RJ-45
Serial Interface
Connector RJ45 RS-232/422/485 software selectable (-N models) or RJ45 Isolated RS-422/485 software selectable (-SiS models)
Ports 8 (XSR5908) or 16 (XSR5916)
Baud Rate 1,200 ~ 921,600 bps software selectable
Data Bits 5, 6, 7, 8 software selectable
Stop Bits 1, 2 software selectable
Parity None, Odd, Even, Space, Mark
Flow Control None, Xon/Xoff, RTS/CTS (RS-232 only)
Isolation 2.5 kV (-SiS models only)
Power
Input Voltage Input Current Power Consumption DC version: 24 – 48VDC; US-EU version: 100~240 VAC (EU or US Plug) DC version: 0.54 A @24VDC; US-EU version: 0.21A@100VAC Approximately 21 W (Max)
Connector DC version: 5.08mm 3-pin Lockable Terminal Block EU-US version: IEC 60320-1 C14 AC Power Inlet
Power Redundancy No
Reverse Polarity Protection Yes (DC version only)
Relay Output Yes (1)
Physical Characteristics
Housing
Dimension (W x H x D) Weight
Installation Reset Button		 IP30 SPCC housing
436 mm x 43.5 mm x 200 mm
3,000g (8-port version); 3,200 g (16-port version) 19’’ Rack-Mount (Kit included)
Yes
Environmental Limits
Operating Temperature
Storage Temperature
Ambient Relative Humidity		 -20°C~70°C (-4°F~158°F)
-40°C~85°C (-40°F~185°F)
5%~95% (Non-condensing)
Sofware
Protocols IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, HTTP, HTTPS, SMP/TLS,Telnet, RFC2217, RSTP, Security through OpenVPN and IPsec (host-to-host or host-to-side)
with up to 37.9Mbps VPN throughput, and PPTP
Configuration Agatel  Management Utility, Web UI, Telnet, Serial Console
VirtualCOM Windows/Linux redirection software
Link Modes
TCP Client Dual destination supports raw-data or VirtualCOM
TCP Server 4 Connections mode supports raw-data; VirtualCOM or reverse Telnet
UDP Up to 4 Ranges IP

Regulatory Approvals

Regulatory Approvals
Safety EN60950-1:2006/ IEC60950-1 LVD
EMC FCC Part 15, Subpart B, Class B

EN 55022, Class B, EN 61000-3-2, EN 61000-3-3, EN 55024
Test Item Value Level
IEC 61000-4-2 ESD Contact Discharge
Air Discharge		 ±8kV

±15kV

 4

4
IEC 61000-4-3 RS Radiated (enclosure) 10 V/m 3
IEC 61000-4-4 EFT AC Power Port
DC Power Port
Signal Port		 ±4.0KV

±4.0KV

±2.0KV

 4

4

3
IEC 61000-4-5 Surge AC Power Port
AC Power Port
DC Power Port
DC Power Port
Signal Port		 Line-to Line±2.0KV
Line-to Earth±4.0KV
Line-to Line±1.0KV
Line-to Earth±2.0KV
Line-to Earth±2.0KV		 4

4

3
3
4
IEC 61000-4-6 CS AC Power Port
DC Power Port
Signal Port		 10 V rms

10 V rms

10 V rms

 3
3
3
IEC 61000-4-8 PFMF Enclosure 1 A/m 3
IEC 61000-4-11 DIP AC Power Port – –
Shock

Drop (Freefall) /Vibration

 IEC 60068-2-27

ISTA Test Procedure 2A /IEC 60068-2-64
RoHS II Yes


MTBF (MIL-HDBK-217F)

 XSR5908-DC: 22.74 years; XSR5916-US/EU: 13.95 years;

XSR5908-SI-DC: 19.00 years; XSR5908-SI-US/EU: 19.03 years;

XSR5916-SI-DC: 13.38 years; XSR5916-SI-US/EU: 13.38 years
Warranty 5 years

Order Information

Model name Description Ethernet Serial
XSR5908-DC 8-Port Serial Device Server, RJ45, RS232/422/485 DC 2 (RJ45) 8 (RJ45)
XSR5908-SI-DC 8-Port Serial Device Server, RJ45, Isolated RS422/485 DC 2 (RJ45) 8 (RJ45)
XSR5916-DC 16-Port Serial Device Server, RJ45, RS232/422/485 DC 2 (RJ45) 16 RJ45
XSR5916-SI-DC 16-Port Serial Device Server, RJ45, Isolated RS422/485 DC 2 (RJ45) 16 RJ45
XSR5908-EU 8-Port Serial Device Server, RJ45, RS232/422/485 EU Plug 2 (RJ45) 8 (RJ45)
XSR5908-US 8-Port Serial Device Server, RJ45, RS232/422/485 US Plug 2 (RJ45) 8 (RJ45)
XSR5916-EU 16-Port Serial Device Server,RJ45,RS232/422/485 EU Plug 2 (RJ45) 16 RJ45
XSR5916-US 16-Port Serial Device Server,RJ45,RS232/422/485 US Plug 2 (RJ45) 16 RJ45
XSR5908-SI-EU 8-Port Serial Device Server, RJ45, Isol. RS422/485 EU Plug 2 (RJ45) 8 (RJ45)
XSR5908-SI-US 8-Port Serial Device Server, RJ45, Isol. RS422/485 US Plug 2 (RJ45) 8 (RJ45)
XSR5916-SI-EU 16-Port Serial Device Server,RJ45,Isol. RS422/485 EU Plug 2 (RJ45) 16 RJ45
XSR5916-SI-US 16-Port Serial Device Server,RJ45,Isol. RS422/485 US Plug 2 (RJ45) 16 RJ45

Accessories

Model name Description
XDP-75-24 75W/3.2A DIN-Rail 24VDC power supply with 88~264VAC / 124~370VDC input
AD17-24C (US-Y) Y-Type power adaptor,100-240VAC input, 0.6A @ 24VDC output, US plug
AD17-24D (EU-Y) Y-Type power adaptor,100-240VAC input, 0.6A @ 24VDC output, EU plug
GDC-120 120mm copper woven grounding cable
XSC-RJ45-DB9-90-M RJ45 to DB9 Male Cable, 90cm
XSC-RJ45-DB9-200-M RJ45 to DB9 Male Cable, 200cm
XSC-RJ45-DB9-90-F RJ45 to DB9 Female Cable, 90cm
XCC-RJ45-DB9-90-F RJ45 to DB9 Female Cross Over Cable, 90cm
XCC-RJ45-DB9-200-F RJ45 to DB9 Female Cross Over Cable, 200cm
XRK-718-BK Rack Mount Mounting-Kit, Black
XPC-US 6 feet Power Cable, US
XPC-EU 6 feet Power Cable, EU
Fuse SFP Transceiver, 1250Mbps, 1310nmDFB, Single-mode, 30km, 3.3V, -40~85°C
